OE Series
-

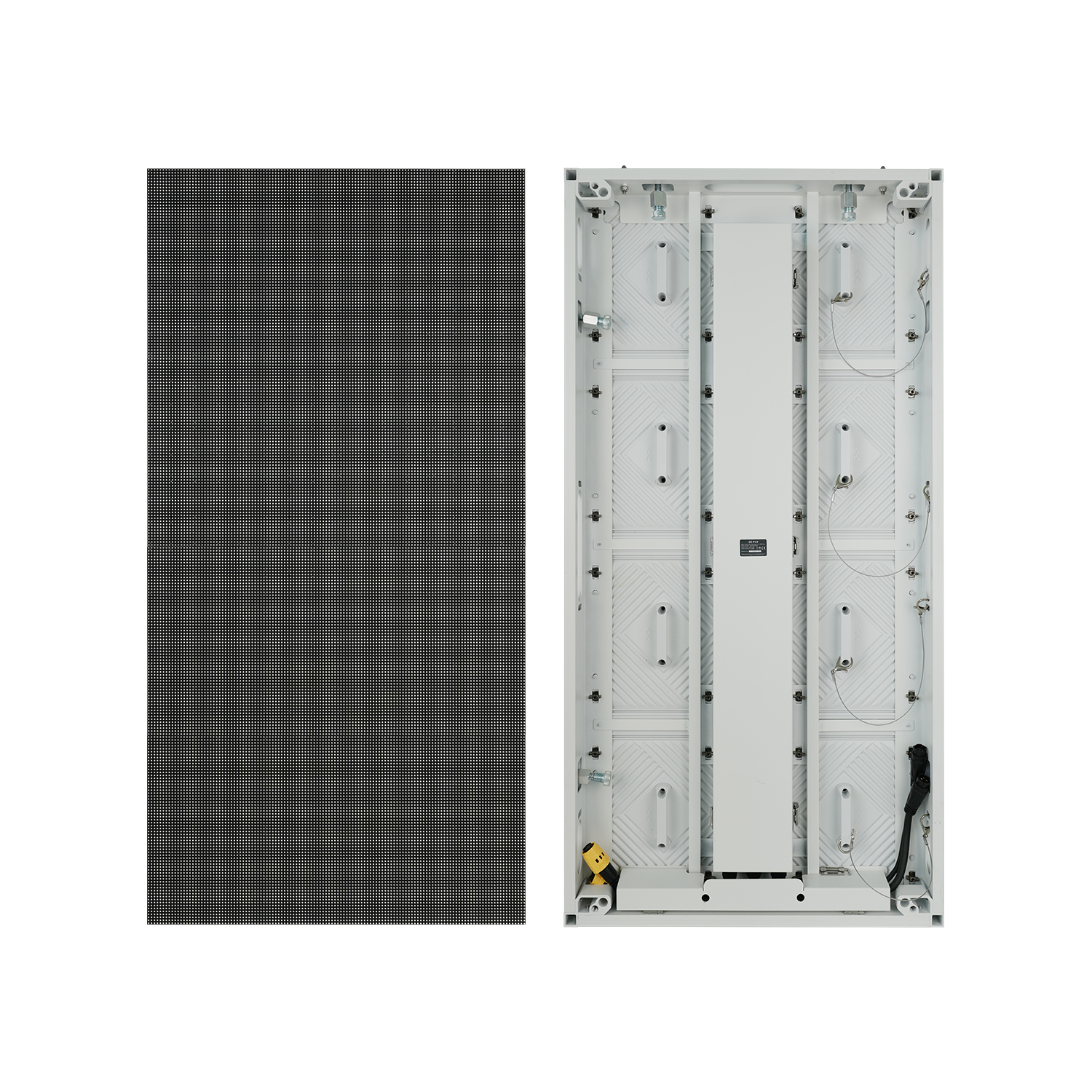

Ultra lightweight led display only 13kg(23.7lbs) per panel, have2.9, 3.9, 4.8, 6.2, 7.8 10.4 pixel pitch for option. Aluminum profile cabinet has higher precision, easy for splicing. Support front service can meet all kinds of installation scenario.
| OE-2.9 | OE-3.9 | OE-4.8 | OE-6.2 | OE-7.8 | OE-10.4 | |
| Physical Pitch | 2.97mm/0.12" | 3.91mm/0.15" | 4.81mm/0.19" | 6.25mm/0.25" | 7.81mm/0.31" | 10.42mm/0.41" |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 112896px/m2 | 65536px/m2 | 43264px/m2 | 22560px/m2 | 16389px/m2 | 9216px/m2 |
| Module Dimension(WxH) | 500x250mm/ 19.68"x9.84" | |||||
| Panel Dimension(WxHxD) | 500x1000mm / 19.68"x39.37" | |||||
| No. of Module/panel(WxH) | 1x4 | |||||
| Module Resolution | 168x84px | 128x64px | 104x52px | 80x40px | 64x32px | 48x24px |
| Panel Resolution | 192x384px | 128x256px | 104x208px | 80x160px | 64x128px | 48x96px |

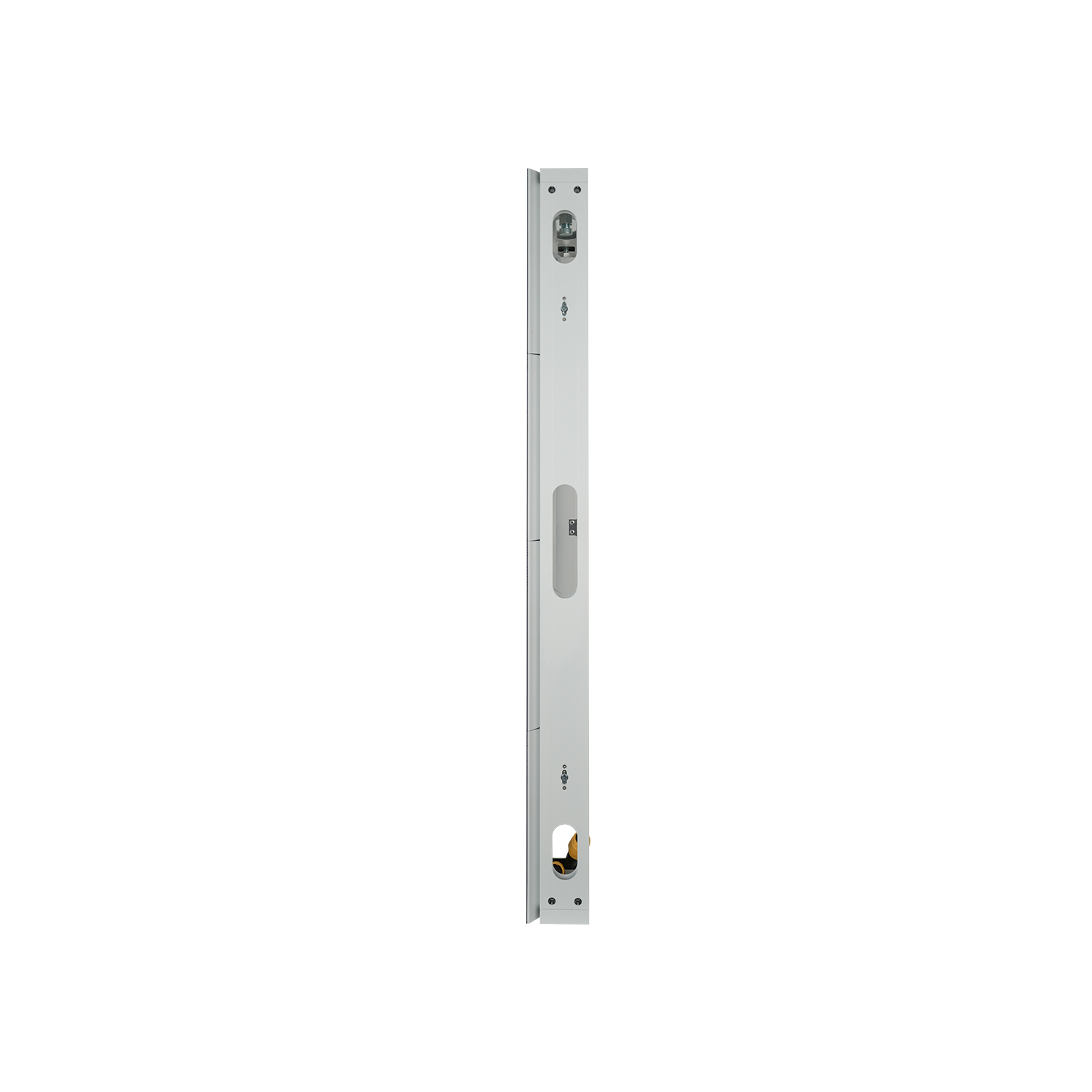

| Panel Material | Aluminum Profile | |||||
| Panel Weight | 13kg( 23.7lbs) | |||||
| Gray Scale | 16bit | |||||
| Contrast Ratio | 4000:1 | |||||
Avg. Power Consumption | 109w/m | |||||
Max. Power Consumption | 325w/m2 | |||||
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | |||||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | |||||
| Refresh Rate | 7680hz | |||||
| Brightness | ≥5000nits | |||||
| Viewing Angle(H/V) | 140°/120° | |||||
| Expected Lifetime | 100,000hrs | |||||
| Max. Stacking/Hanging | 10 | |||||

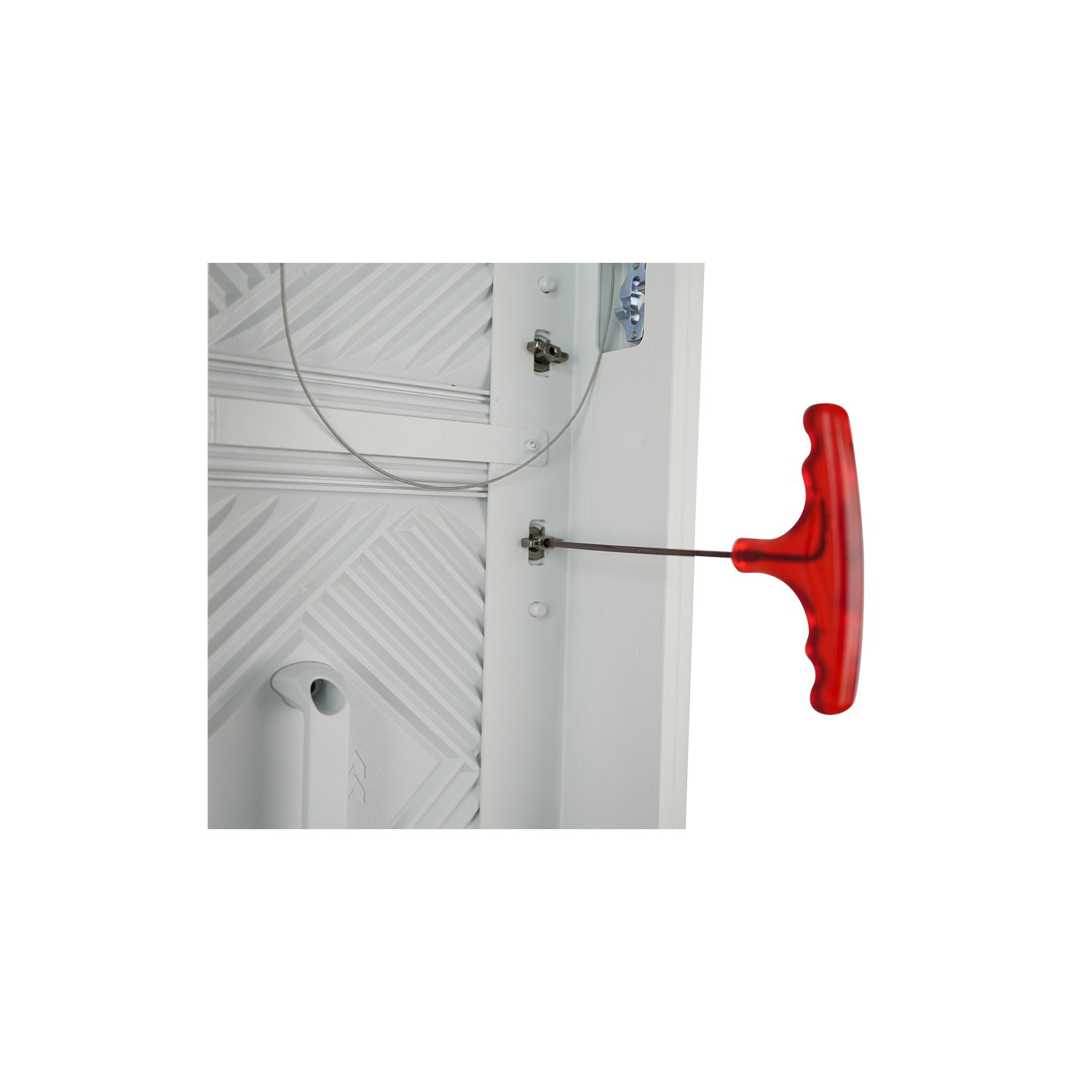

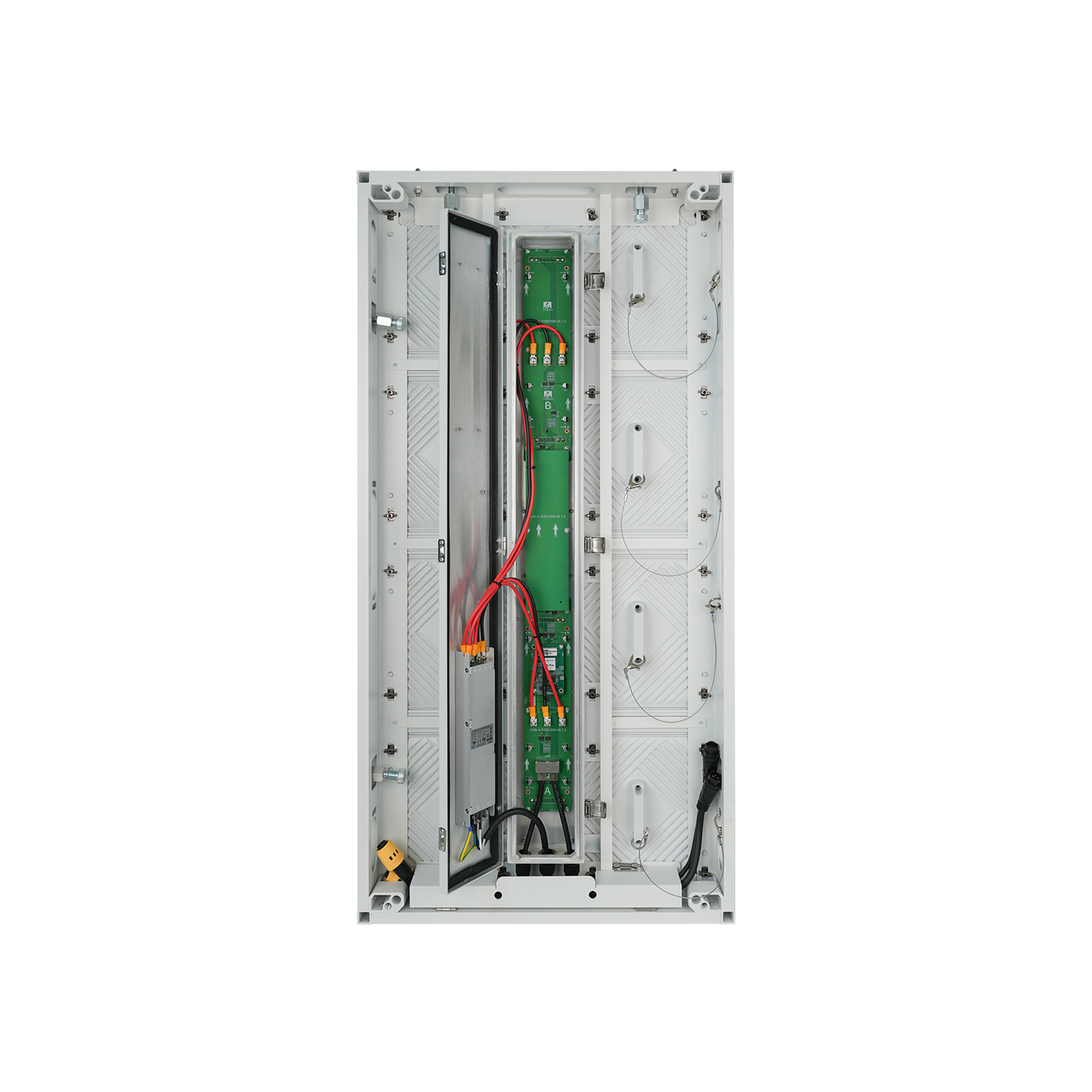

| Service | Front | |||||
| IP Rating(Front/Rear) | IP65/IP54 | |||||
| Certification | CCC,CE,ETL,RoHS | |||||
