BUD Series
-

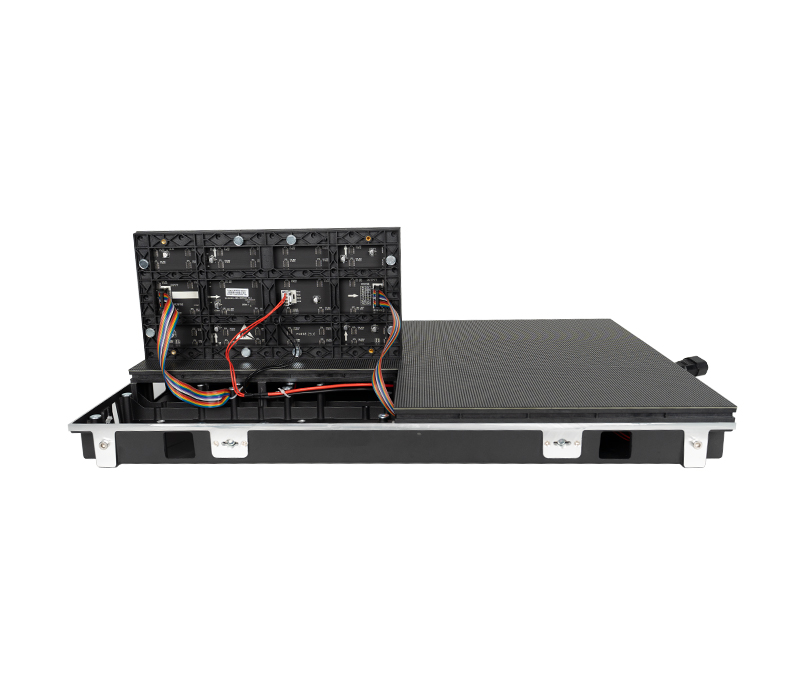

BUD series led video panel is designed for indoor commercial display, has pixel pitch 1.25mm, 1.538mm, 1.86mm, 2.5mm for option. Magnetic module design for front service and installation, make sure it can be widely used in all kinds of commercial application scenario.
| BUD-1.2 | BUD-1.5 | BUD-1.8 | BUD-2.5 | |
| Physical Pitch | 1.25mm/0.05" | 1.538mm/0.06" | 1.86mm/0.07" | 2.5mm/0.09" |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD2121 |
| Pixel Density | 640000px/m2 | 422500px/m2 | 289000px/m2 | 160000px/m2 |
| Module Dimension(WxH) | 320x160mm / 12.59"x6.29" | |||
| Panel Dimension(WxHxD) | 640x480x85mm / 25.2"x18.9"x3.3" | |||
| No. of Module/panel(WxH) | 2x3 | |||
| Module Resolution | 256x128px | 208x104px | 172x86px | 128x64px |
| Panel Resolution | 512x384px | 416x312px | 344x258px | 256x192px |
| Panel Material | Die-casting Aluminum | |||
| Panel Weight | 6.5kg / 14.33lbs | |||
| Gray Scale | 16bit | |||
| Contrast Ratio | 4000:1 | |||
| Avg. Power Consumption | 64w | |||
| Max. Power Consumption | 192w | |||
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | |||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | |||
| Refresh Rate | 7680hz | |||
| Brightness | >500nits | |||
| Viewing Angle(H/V) | 160°/140° | |||
| Expected Lifetime | 100,000hrs | |||
| Service | Front | |||
| IP Rating(Front/Rear) | IP40/IP21 | |||
| Certification | CCC,CE,ETL,RoHS | |||
