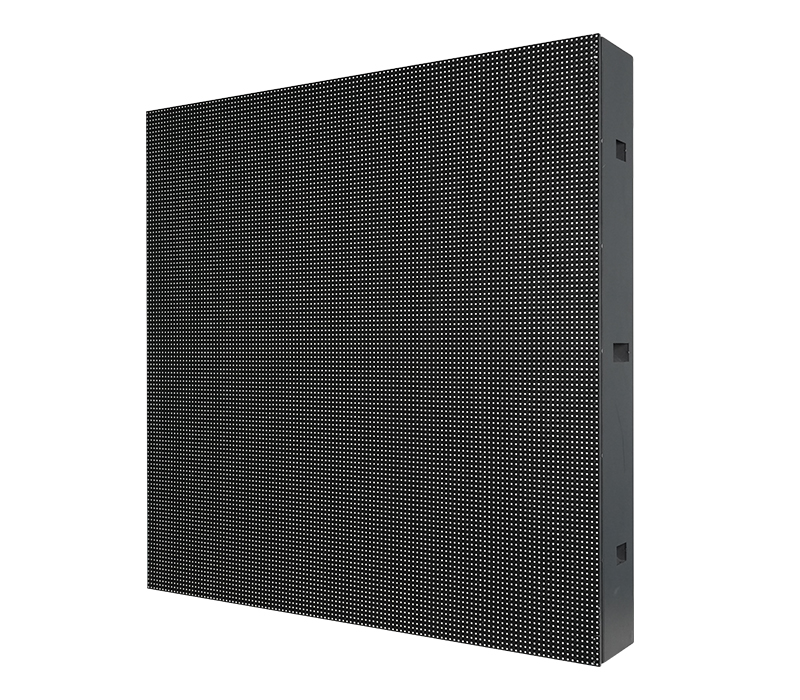

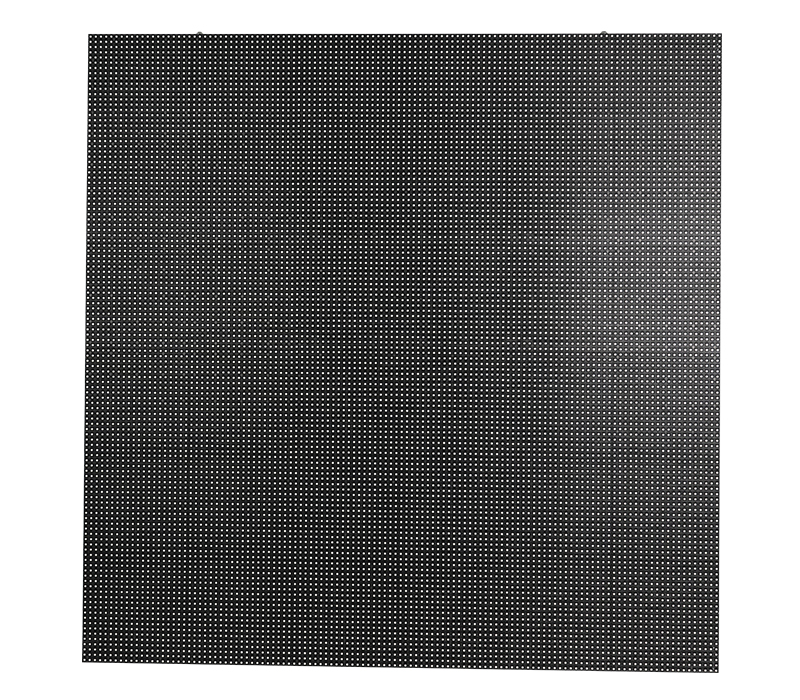

OC Series
-
OC Series LED display is a cost-effective model, high brightness, great waterproof, with cold steel housing. High resolution and brightness will maximize your outdoor LED screen consistent and long-lasting image quality.
| OC-3 | OC-4 | OC-5 | OC-6 | OC-8 | OC-10 | OC-16 | |
| Physical Pitch | 3mm | 4mm | 5mm | 6mm | 8mm | 10mm | 16mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | DIP346 |
| Pixel Density | 97656px/m2 | 62500px/m2 | 40000px/m2 | 22376px/m2 | 15625px/m2 | 10000px/m2 | 3906px/m2 |
| Module Dimension(WxH) | 192x192mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm |
| Panel Dimension(WxHxD) | 960x960x150mm / 37.79"x37.79"x5.9" | ||||||
| No. of Module/panel(WxH) | 5x5 | 3x6 | 3x6 | 3x6 | 3x6 | 3x6 | 3x6 |
| Module Resolution | 64x64px | 80x40px | 64x32px | 48x24px | 40x20px | 32x16 | 20x10 |
| Panel Resolution | 320x320px | 240x240px | 192x192px | 144x144px | 120x120px | 96x96px | 60x60px |
| Panel Material | Cold steel | ||||||
| Panel Weight | 65kg / 143.3lbs | ||||||
| Gray Scale | 16bit | ||||||
| Contrast Ratio | 2000:1 | ||||||
| Avg. Power Consumption | 230w/m2 | ||||||
| Max. Power Consumption | 650w/m2 | ||||||
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | ||||||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | ||||||
| Refresh Rate | 3840hz | ||||||
| Brightness | ≥5500 nits | ||||||
| Viewing Angle(H/V) | 160°/140° | ||||||
| Expected Lifetime | 100,000hrs | ||||||
| Max. Stacking/Hanging | 10 | ||||||

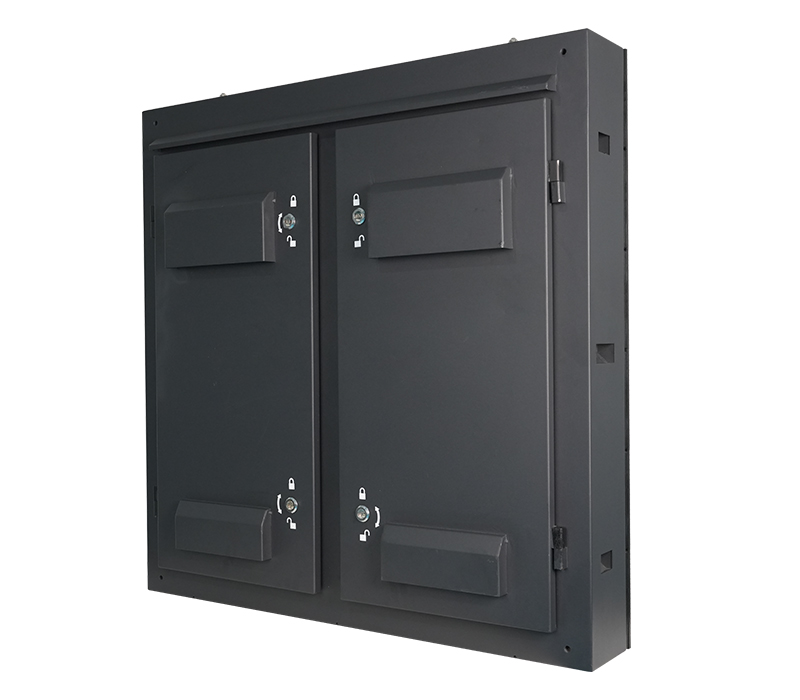

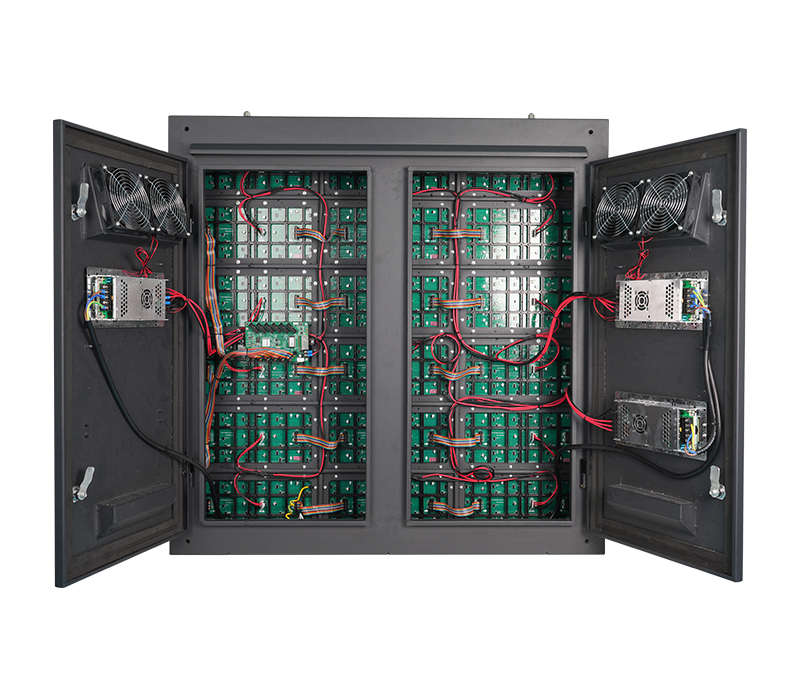

| Service | Rear | ||||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||||
| Certification | CCC,CE,ETL,RoHS | ||||||
