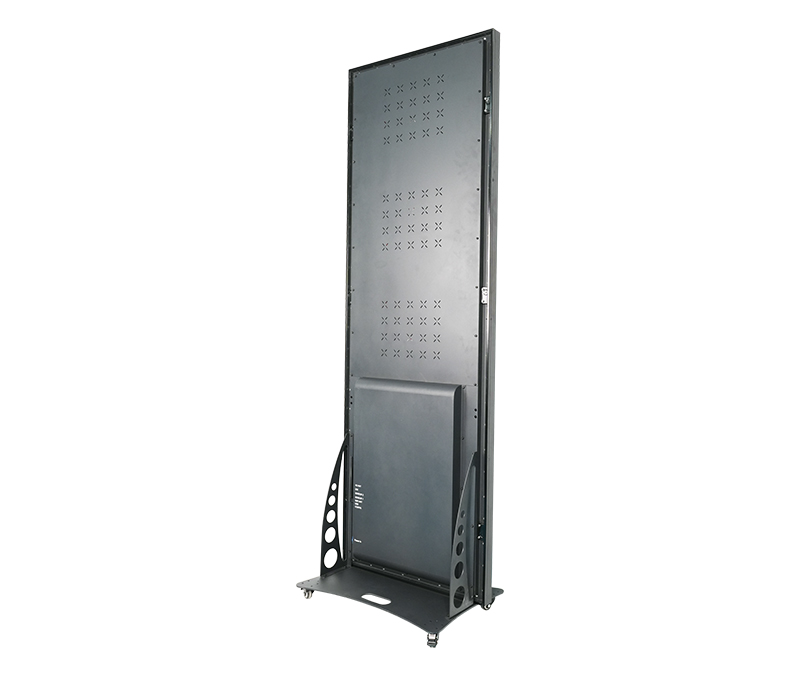

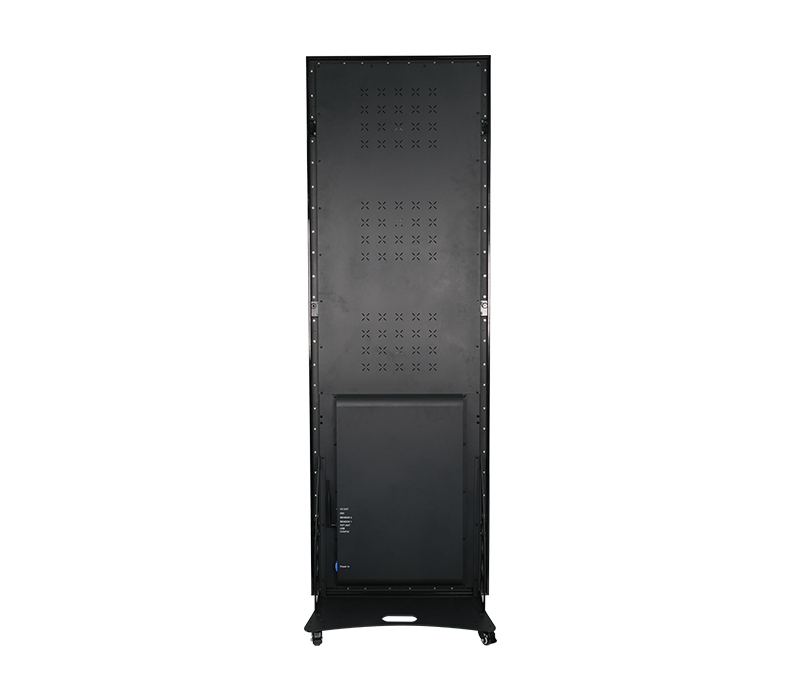

IP Series
-
Ideal variable information poster. it can be controlled by laptop, mobile phone, cloud platform remote control, very convenient tools for commerical display in shopping mall, retail store, conference room, exhibition etc.
RELATED PRODUCTS
| IP-1.2 | IP-1.5 | IP-1.8 | IP-2.5 | |
| Physical Pitch | 1.25mm | 1.53mm | 1.86mm/0.07“ | 2.5mm/0.1" |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD2121 |
| Pixel Density | 640000px/m2 | 422753px/m2 | 289050px/m2 | 160000px/m2 |
| Module Dimension(WxH) | 320×160mm/12.59"x6.29" | |||
| Panel Dimension(WxHxT) | 640×1920x35mm/25.19"x75.59"x1.37" | |||
| No. of Module/panel(WxH) | 2x12 | |||
| Module Resolution | 256x128px | 208x104px | 172x86px | 128x64px |
| Panel Resolution | 512x1536px | 416x1248px | 344x1032px | 256x768px |
| Panel Material | Aluminum | |||
| Panel Weight | 48kg/105.82lbs | |||
| Gray Scale | 16bit | |||
| Contrast Ratio | 4000:1 | |||
| Avg. Power Consumption | 200w | 200w | 200w | 160w |
| Max. Power Consumption | 600w | 600w | 600w | 480w |
| Operating Temp/Humidity | -10°C - 60°C / 10% - 60% | |||
| Storage Temp/Humidity | -30°C - 60°C/ 10% - 60% | |||
| Refresh Rate | 3840hz | |||
| Brightness | >600nits | |||
| Viewing Angle(H/V) | 160°/140° | |||
| Expected Lifetime | 100,000hrs | |||
| IP Rating(Front/Rear) | IP40/IP21 | |||
| Certification | CCC,CE,ETL,RoHS | |||
